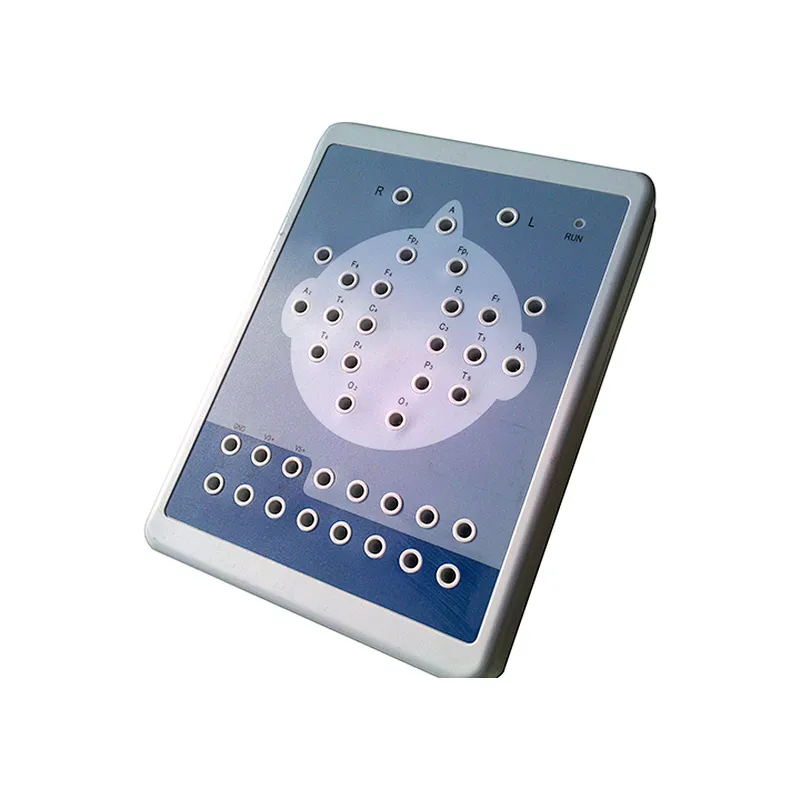

KT88 Digital Brain Electric Activity Mapping

Introduction

• KT88 Digital Brain Electric Activity Mapping collects EEG signal with electrodes, via integrated amplification, A/D transformation, PC auto-analysis, FFT, to form electroencephalogram that displays with color depth. The product is applicable for checking such diseases as epilepsy, intracranial inflammation, cerebrovascular diseases and brain tumors.

Main Features

• ◆16 channels of EEG+2 channels of ECG (ECG is optional)

• ◆Sampling rate: 100 dots/s

• ◆Accuracy: 12bit

• ◆Input impedance: ≥10MΩ

• ◆Patient leak current: < 10µA

• ◆Noise level: ≤5µVp-p

• ◆CMRR: ≥90dB

• ◆Magnification multiple: 10000

• ◆Filter constant: all digital and free enactment

• ◆Display speed(paper speed): 5, 10, 15, 30, 60, 120 mm/s

• ◆Amplitude: 1, 1.5, 2, 3, 5, 7.5, 10, 12, 15, 20, 30, 50 mm/50µV

• ◆Playback speed:1 time, 2 times, 3 times, 10 times, 20 times, 40 times, 60 times

• ◆50Hz interference suppression: ≥30dB

• ◆Safety type:Class II, type BF applied part
